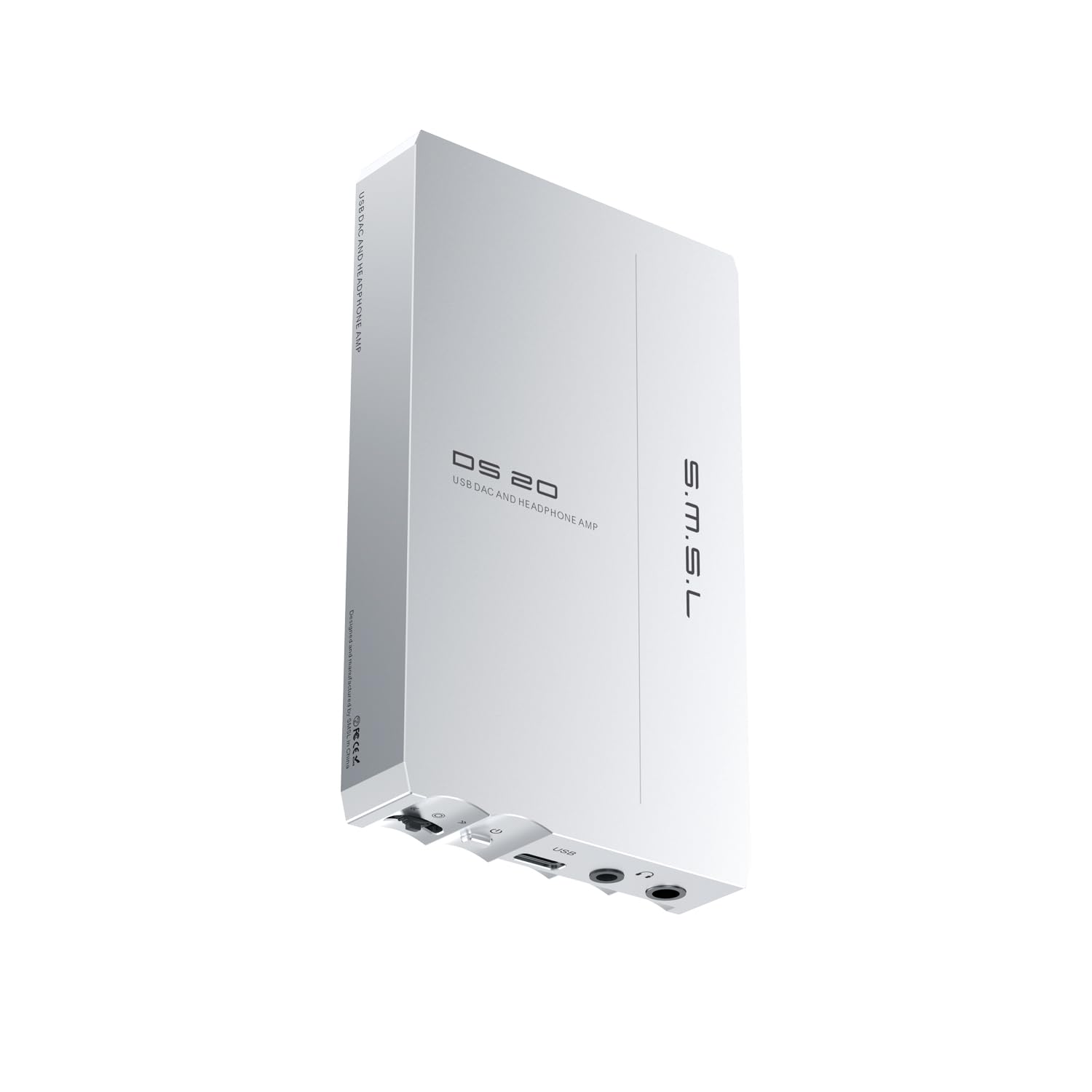

Fanmusic SMSL DS20 Protable USB DAC& Headphone Amplifier Quad CS43131 XU-316
Product details
| Management number | 239161622 | Release Date | 2026/07/14 | List Price | US$76.00 | Model Number | 239161622 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
USB transmission: Asynchronous USB compatibility: Windows7/8/8.1/10/11 Android、i0s、Mac Osx、Linux Bit depth: 1bit, 16~32bit Sampling rate: PCM 44.1~768kHz DSD 2.8224~11.2896MHz Battery capacity: 6000mAh(22.2wh) Size: 71x17x118.5mm (WxHxD) Weight: 275g Input: USB Output: 3.5mm HP; 4.4mm HP Output level: 3.5mm HP Output 3 Vrms 4.4mm HP Output 6 Vrms Output Impedance: HP Output approach 0Ω Output Power： 16Ω 500mW x2 32Ω 500mW x2 64Ω 350mW x2 150Ω 240mW x2 300Ω 120mW x2 600Ω 60mW x2 THD+N (UN Weighted): 300Ω 0.0002% Dynamic range: 3.5mm HP Output 126dB 4.4mm HP Output 126dB SNR: 3.5mm HP Output 126dB 4.4mm HP Output 126dB WHAT IN BOX? DS20 * 1 User manual * 1 Brand card * 1
- Powered by 4xCirrus Logic CS43131 Latest Generation High-Performance DAC Chips. Circuit Design for Fully Balanced Ear Amplifier with PLFC. 3rd Gen XMOS XU-316, PCM Support: Up to 32-bit/768kHz,DSD Support: DSD256
- Dedicated Audio Clock Circuit. Significantly reduces clock jitter, minimizes tonal distortion, enhances soundstage positioning and micro-detail resolution.
- Magnetic Empowerment, Sturdy as a Rock. magnetic decoder crafts mimimallst HI-FI excellence.
- Dual Mode Selection USB1.1 and USB2.0. USB1.1 mode enables connectivity with gaming consoles.
- HI-FI Grade Internal Components. Precision-Tuned to Satisfy Audiophiles’Obsessive Pursuit of True-to-Original Sound.
| ASIN | B0F8813VDM |
|---|---|
| Manufacturer | S.M.S.L |
| Item model number | DS20 |
